Audio & Video
Explore the truck's inside and become acquainted with all of the specifications
Video System Specifications
Cameras
High Definition Cameras
14x Sony HXC 100
Super SloMo Cameras
3x Sony HDC-3300R HD Cameras
Mini Cam
3x Marshall CV-368 + RCP
PTZ Cameras
3x Sony BRC X1000 + RM IP 500
RF Camera System
Boxx Zenith 2
Lenses
Fujinon
1x 101 Box Lens
Canon
1x 86 Box Lens
Canon
2x 72 Box Lens
Fujinon
1x 50 Box Lens
Fujinon
1x 40 Lens
Canon
6x HJ 22x7,6 Lens
Canon
2x HJ11x4,7 Lens
Fujinon
2x HA13x4,5 Lens
Fujinon
4x HA18x7,6
Tripods
Sachtler
Video 90
Sachtler
Video 20
Secced
Reach 5 Plus
Low level (profile)
360 degree
Vision Switcher
Sony MVS 3000
32inputs,16 outputs , 2,5 ME , 4 keyers per ME, 8 channel frame memory
Video Matrix
Miranda Nvision 8500-144x144
Servers
4xEVS XT2 ( 6 ch ) + EVS IP Director
5 operator positions
Grass Valley K2 Dyno
8 channels
Hard Disc,VTR and USB Recorders
Aja
1x Ki Pro
Blackmagic Design
4x HyperDeck Studio Pro
Simply Live
MMR 410 Multi Channel recorder
LGZ
USB Stick recorder
Sony
HDCam
Sony
XDCAM HD
Panasonic
DVCPro HD
Character Generator
Caspar HD
Internal
PlayBox HD
Wall Production/Vision Control Monitors, Video measurment and Glue
TV Logic
15x LVM-212W
NEC
16x Multiview
Sony
2x PVM-1741
BMD
8x Smart View Duo
Tektronix
WFM-5200
Axon Digital Design
Glue
Miranda
Glue
Remote Light Box on fiber cable
Rx/Tx
4x 8 channel HD 3G Lines
Audio System Specifications
Audio Mixer
Yamaha
2x DM 2000 Cascaded
Inputs
96x Mono (48 digital/48 analog)
Outputs
8 bus , 2 masters , 12 aux , standard multitrack option
Audio Matrix
Thomson Triton
32x32 AES / EBU
Audio Monitoring
Genelec
2x Monitors
Genelec
In video production
Neumann (5.1)
5x K&H 120A
Audio Effects
TC Icon
6000FX
TC Icon
D2 Digital Delay
Wave
L2 Digital
DK
MDS600C Analyser
Dolby E
2x DP570
Embedder / De-Embedder
Miranda
ADX / AMX-3981
AJA
FS2
Multi Track Audio Recorder
Tascam
48M
Rec / Play Audio
Apple
Mac Mini
Intercom Equipement
Telex
RTS Cronus 48x48, fully reduntant
Panels
6x KP32
Panels with headset
8x KP12
Wire IFB
4x4
Wireless Comm
Telex
RadioCom, 2ch with 4 Belt Pack
Motorola Duplex System
Integrated w/Telex System and Riedel interface
Microphones
Sennheiser
12x MKH 416
Sennheiser
4x MD 46
Sennheiser
4x IEM 300 In Ear System
Sennheiser
6x EW 500 Wireless System
Rode
8x NTG 2
Rode
2x NTG 3
Rode
Stereo Microphone
5.1 Surround Microphone
DPA 5100
Commentary Interface
Glensound for one Comm position
1x
Glensound for two Comm position
2x
IP / ISDN Codecs
AEQ
Phoenix Alio / Mobile / Stratos
Remote Optical Stage Box
Roland
2x 16x8 Channels
Roland
1x 8x8 Channels

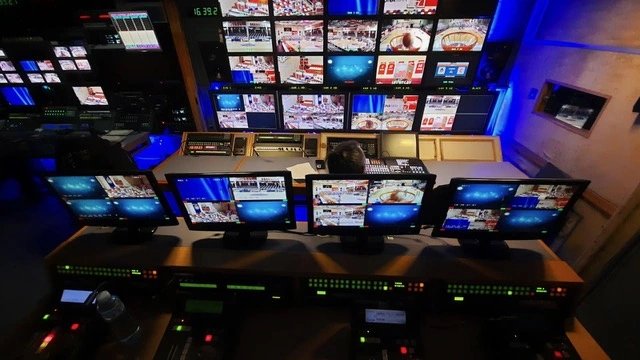

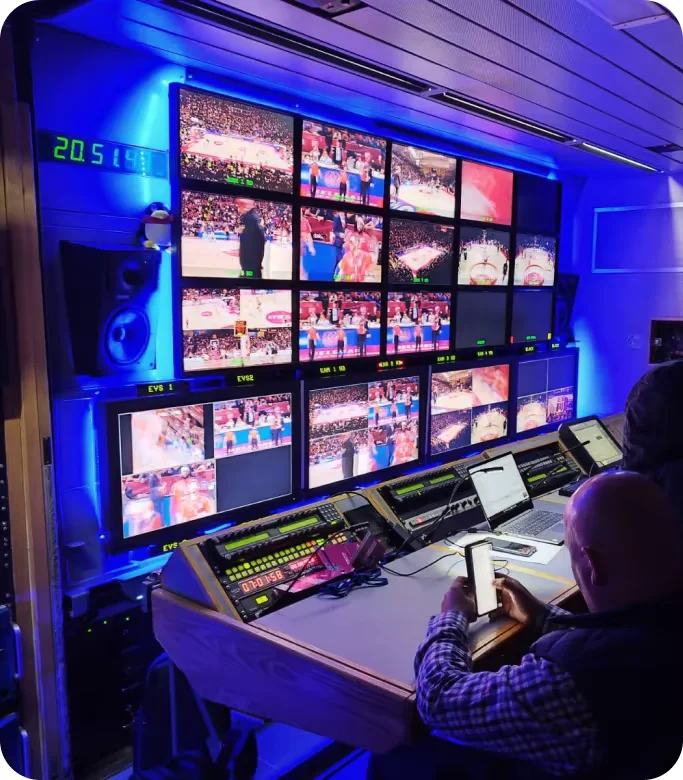

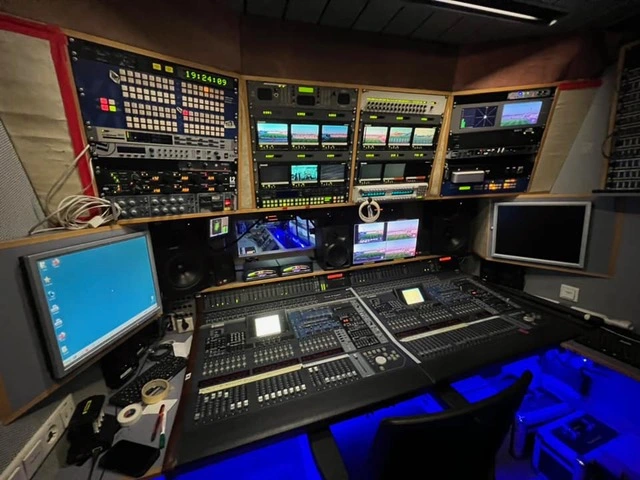

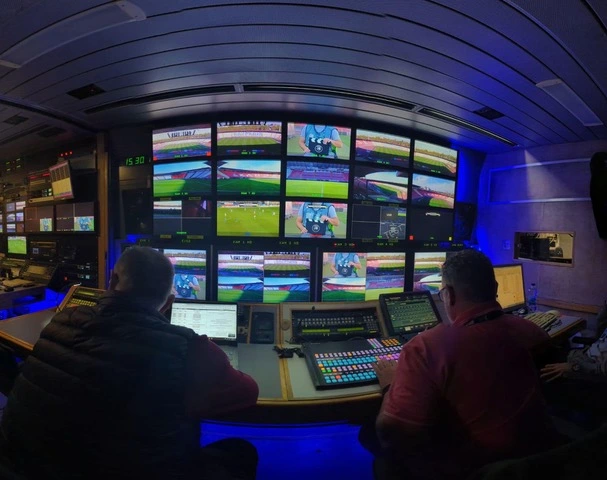

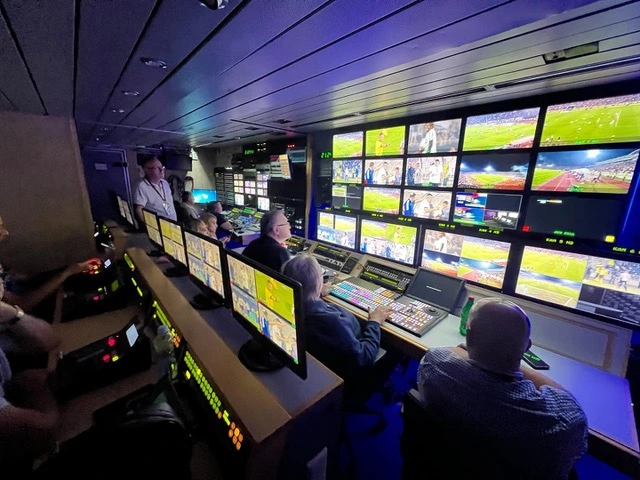

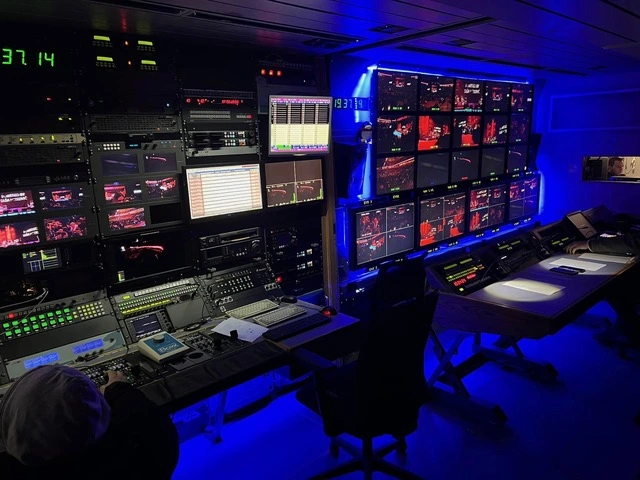

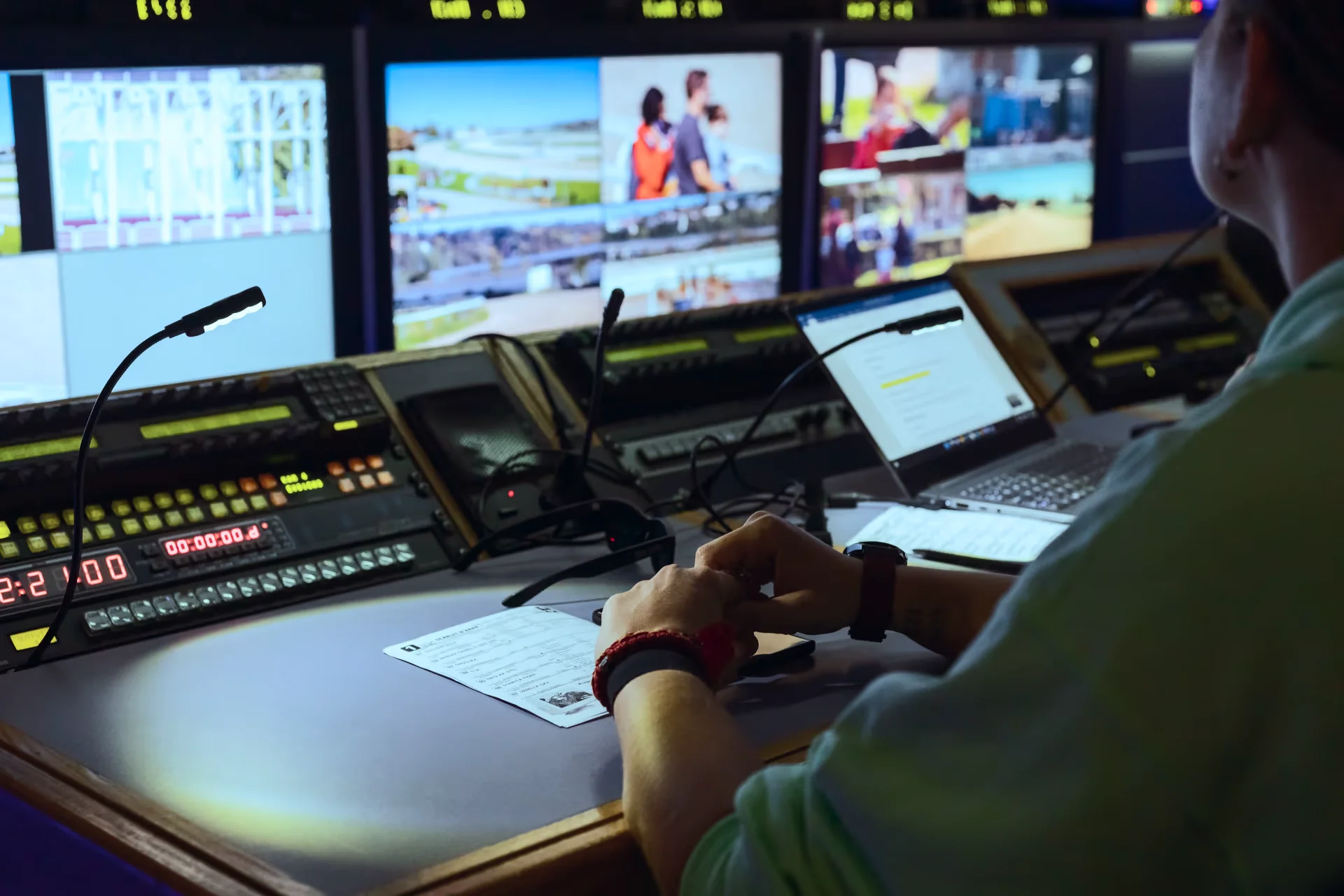

Take a look at the inside of the VI-1 truck!
